LRT SCOOPS

LRT

LUPI RACING TECH

CUSTOM POLYCARBONATE FABRICATION

MADE IN THE USA

WITH THE FINEST MATERIAL

LEXAN HOOD SCOOPS

 STANDARD SIZE

SINGLE 4150 CLEAR or SMOKED

  SINGLE 4500 CLEAR or SMOKED

$225.00 each + Shipping

STANDARD SIZE SCOOP:

Base: 16″ Long x 11″ Wide

Top: 17 1/2″ Long

Height: 5 1/2″ Front,  4 3/8″ Back



OTHERS CAN BE CUSTOM MADE FOR YOU

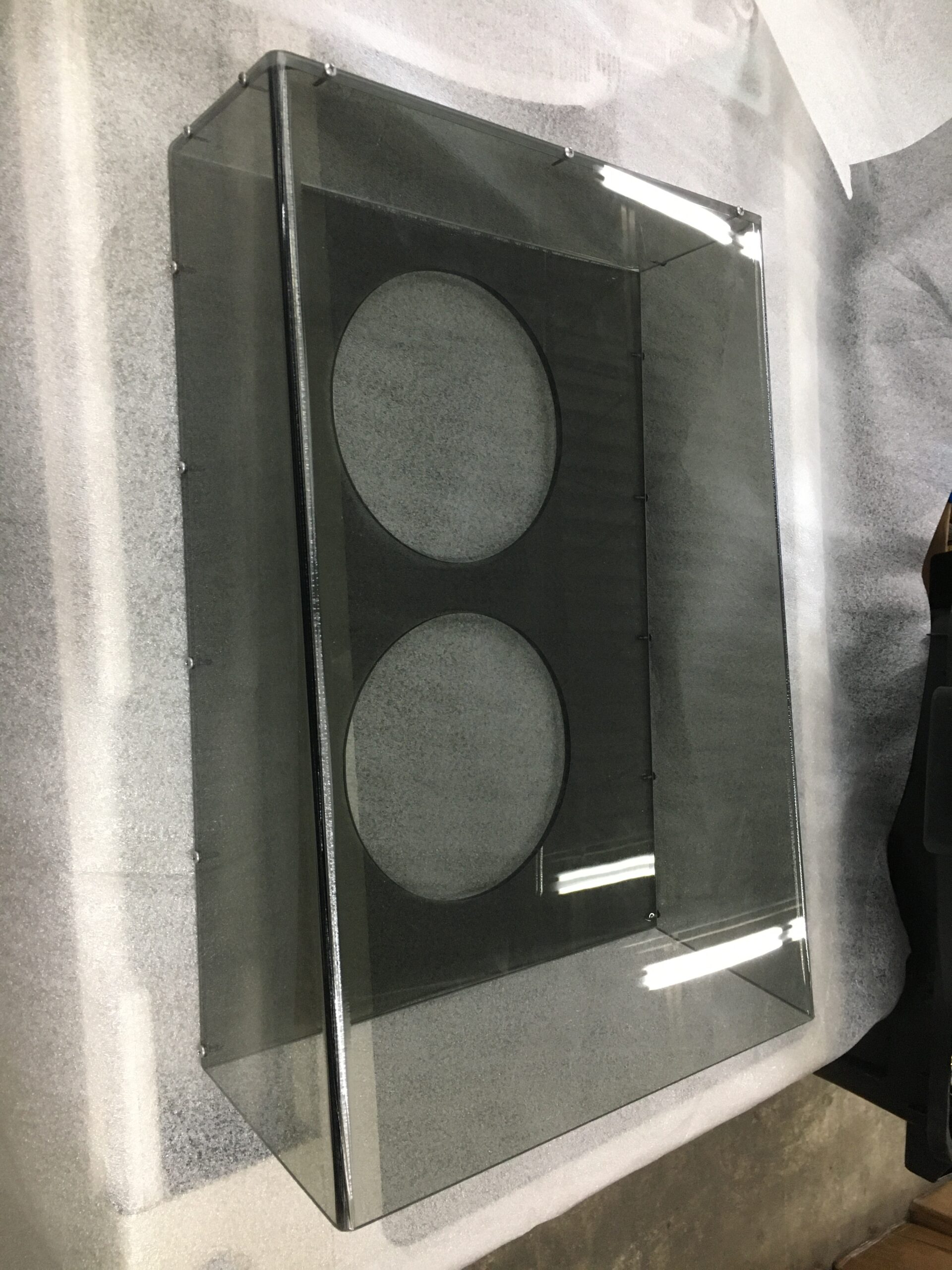

– CUSTOM and DUAL CARB SCOOPS start at $300.00 + Shipping

– SCOOP PLUG $39.99



To order or for questions

Contact Us at:

SST1774@MSN.com

215-494-9180

Send PayPal Payments to:  SST1774@MSN.COM

Mounting:  We leave that up to the customer.  We do sell a mounting kit for the LRT standard single carb scoop ( 4150 or 4500).  This consists of a long air cleaner stud ( bolt rod / all thread ) and aluminum sleeve, washers and a wing nut.  This is the most common way of mounting.  Others have made stands and brackets or used the mounting tabs on the Gen 3 style Dominator Carbs.  The top panel of the scoop has no hole in it so if you are using the air cleaner stud method, you would need to drill a hole for the stud.  Dzus fasteners are fine for a dual hole scoop but we do not recommend them on a single scoop.

If you are ordering a Custom LRT Scoop from us, here are the dimensions we will need (see diagram). You can write it out like this:
A= 9 1/4″
B= 5 1/2″
C= 3″
D= 4″

E=4″


We will also need to know if you want it smoked, clear or a combination of the two.
The height in the front and the back

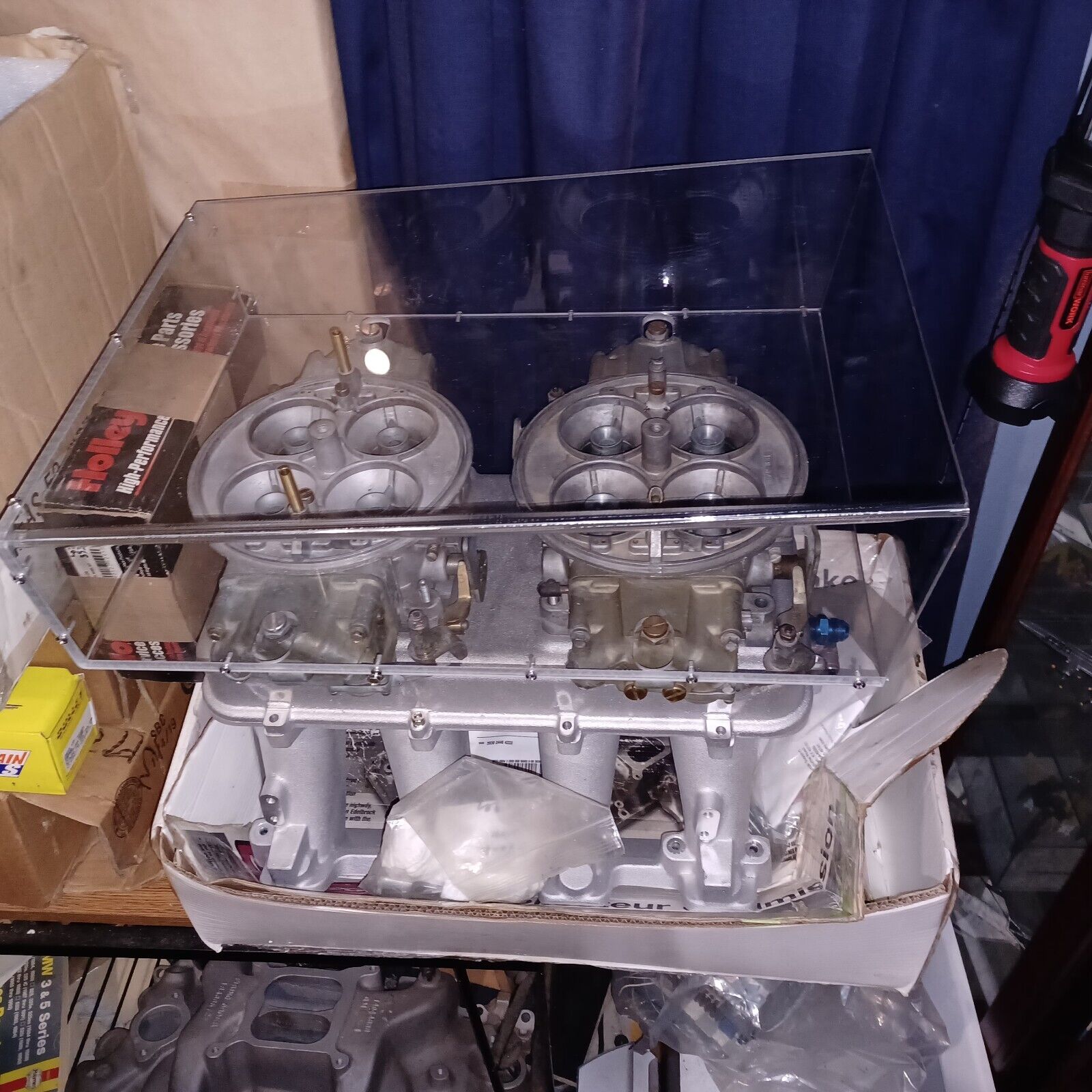

Dual carbs:  if they are twisted or split, we will need you to send us a template or we can send a scoop with no float adjuster holes and you can drill it out for them.  If they are not twisted, we can use the center to center measurement or the carbs.  (A) on the template.

On single carb scoops we need to know if the carb / throttle body / ect. is centered.  If not measure the drivers side fender to center of the carb ( air filter stud hole ) and the passengers side fender to carb center and give us those measurements.

DSC00003

DSC00003

MADE BY THE WORLD FAMOUS LUPI ANTHONY. AS SEEN ON TV AND IN MANY WINNERS CIRCLE PICTURES.
